Injection Extruder Auxiliary Equipment Chilled Water Chiller

Jinan Mgreenbelt Machinery Co,.Ltd
Contact Now

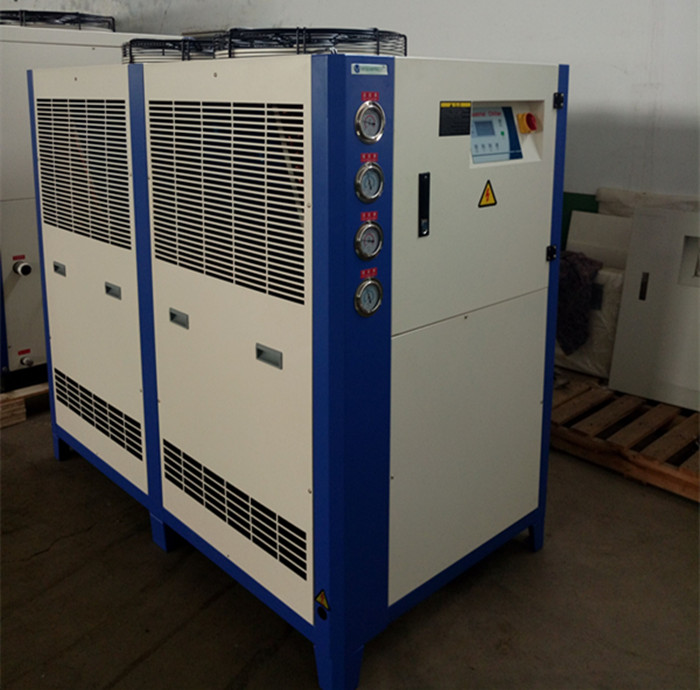

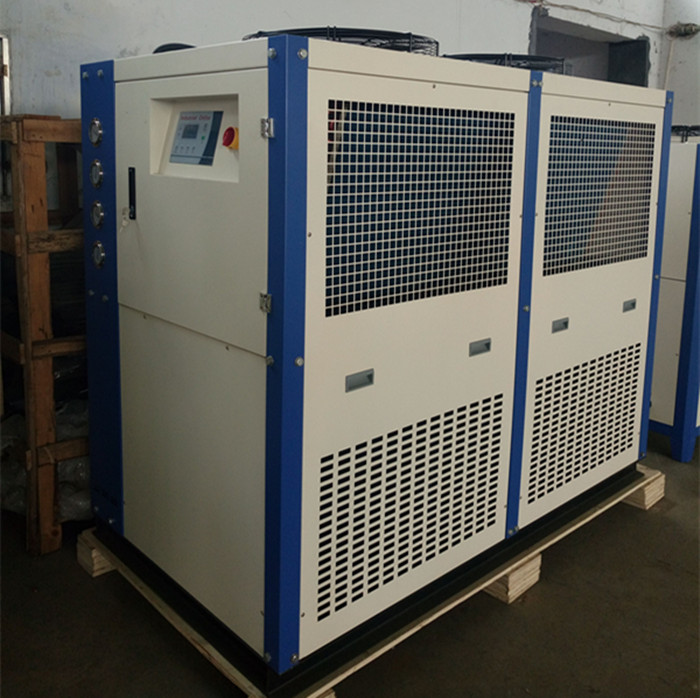

Injection Extruder Auxiliary Equipment Chilled Water Chiller

Place of Origin : China

Brand Name : MGREENBELT

Certification : CE

Model Number : MG-20C(D)

Cooling capacity : 15 ton, 55kw,47558kcal

Compressor Brand : Copeland, Panasonic, Danfoss

Chiller condenser : Finned Copper Tube

Chiller fan : 20000m3/h

Pump Power : 1.5kw

Stainless steel tank volume : 350L

Voltage : 3PH~220V/380/415V/460V/480V-50HZ/60HZ

Dimension(L*W*H) : 2100*1000*700mm

MOQ : 1 Set

Price : FOB Qingdao $2000~$5000

Packaging Details : Standard wooden case

Delivery Time : Within 15 working days

Payment Terms : T/T,L/C,D/P,DDU

Supply Ability : 300 Sets/Months

Loading port : Qingdao,Ningbo,Shanghai,Guangzhou

Contact Now

Injection Extruder Auxiliary Equipment Chilled Water Chiller

  • Normally 20hp 15tr  Auxiliary Equipment Chiller , widely used for plastic injection, extruding machine.
  • Outlet temperature range: +5~+35 degree C
  • Water flow: 9.48m3/h
  • Water tank: 350L
  • Pump power: 1.5kw
  • Different cooling capacity customized.
  • OEM service.

Injection Extruder Auxiliary Equipment Chilled Water Chiller



Technical Data:



Chiller Model   MG-20C(D)
Cooling efficiency of 15 tr chiller kW 55.3 *
Voltage of chiller unit voltage 220/380/415/440/480
Frequency of air cooling chiller Hz 50/60
Refrigeration compressor Power (kW) 18.1
Air cooled chiller condenser   Finned copper tubes
15 ton  chiller evaporator Type Shell and tube
Tank with coils
Cooling water flow m3/h 9.48
Chiler water pump Life (m) 20
Pump power  Kw 1.5
Dimension  mm 2100*1000*1700
Weight Kg 850



- Auxiliary Equipment Chiller -



Injection Extruder Auxiliary Equipment Chilled Water Chiller

Injection Extruder Auxiliary Equipment Chilled Water Chiller



-Construction of  Auxiliary Equipment Chiller -

1.Compressor

Refrigeration compressor

  • Brand:

         Copeland/Panasonic/Danfoss

  • Power supply:3phase, 220v/380/415/440v/50, 60hz
  • Refrigerant:

         R407c, R22, R410a

  Injection Extruder Auxiliary Equipment Chilled Water Chiller



2. Condenser

    Injection Extruder Auxiliary Equipment Chilled Water Chiller

Air cooling condensing unit



  • Adopt V type
  • To incerase the condenser heat exchanger area
  • Hhigh efficiency



3. Evaporator type

  • Tank with coil type

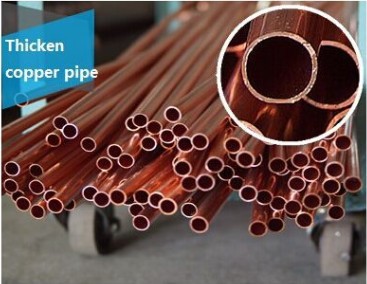

          And for the copper thickness, we adopt the 1mm but almost other supplier just use 0.6mm, you           know the thickness of copper will influence the working life of chiller.

          If the 15 ton chiller user side is a sealed circulate water system, we suggest you choose this                 type, so that can ensure the water pressure balance.

  Injection Extruder Auxiliary Equipment Chilled Water Chiller   Injection Extruder Auxiliary Equipment Chilled Water Chiller
  Injection Extruder Auxiliary Equipment Chilled Water Chiller
  • Shell and tube type

       If user site is a open type circulate water system, or distributor can not sure user site with which type, we suggest you choose this evaporator.

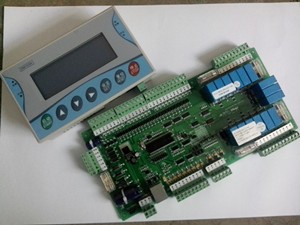

4. Controller

  •  Mirco-computer control system
  • Controller function--- we adopt microcomputer control system from PUNP
    brand, the Top 1 controller supplier in our line.
  • Remote control: we will reserve a terminal in advance, if need this function then
    connect a switch and alarm , so that you can control the chiller stop, running, and
    alarm if any running problem of chiller at office.
   Injection Extruder Auxiliary Equipment Chilled Water Chiller  Injection Extruder Auxiliary Equipment Chilled Water Chiller


-  Auxiliary Equipment Chiller widely used in industries-

Acid cooling, bakeries, beverage, blow molding, breweries, cement cooling, chemical process, concrete cooling, dairy milk, extrusion molding, fermentating, HVAC, injection molding, laminating, molding, oil cooling pharmaceutical, printing, poultry, plastics, swimming pool, etc.



-Packing&shipping-

The air cooled chiller will use the bubble glue at first, then the shockproof cotton, then the plastic film to protect the machine. Then add the wooden packing. The wood packing is the woodiness plywood + the solid wood.
